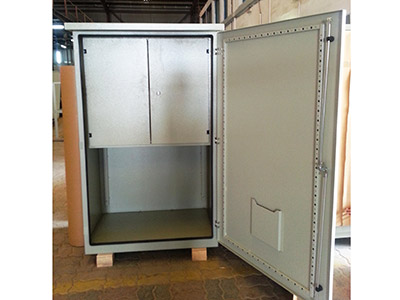

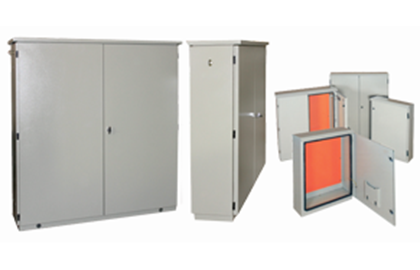

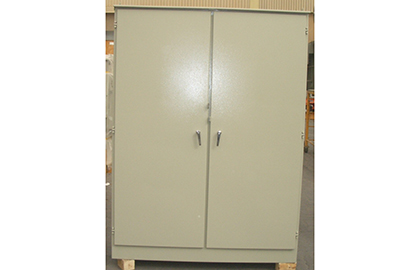

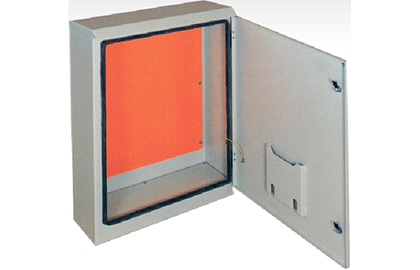

Single wall Aluminium Enclosures

Each aluminum enclosure is carefully designed for maximum Strength, Rigidity & Support Single walled enclosures come with simple construction to protect electrical equipment against weather conditions and corrosion.


  1. Enclosures are made of Aluminum Sheets which provides very good corrosion resistance and are powder coated with RAL 7032 textured finish.
  2. A large cable entry area is provided through detachable gland plates. For single wall system, mounting plate can be fixed to desired depth facilitating easy installation of components and are electro-statically power coated with RAL 2000.
  3. Doors are fitted with Stainless Steel hinges with 180° opening angle. Body is provided with high quality gasket to protect against environmental temperature, humidity, dust, water and salinity.

Technical Data

Material – Aluminium Body, GI MP
Thickness – 3 mm Al

Options – Internal door, Plinth, Louvers, Paint on request.

  • Dimensions can be customized above 150mm depth
  • For 1200mm & onwards width-Double Door type
  • Upto IP 65 Rating

For more details please contact us
