Extendable Enclosures

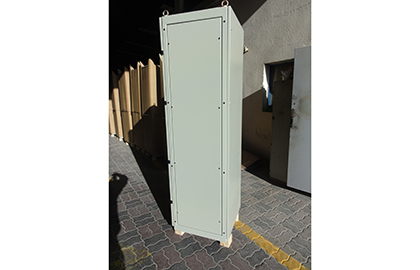

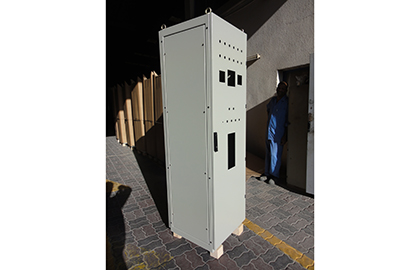

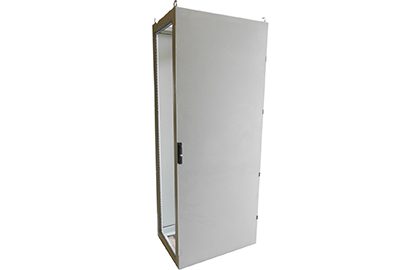

Extendable enclosures can be used in sub-main or Main form-2 electrical distribution in residencial, industrial and commercial buildings. Sunshine extendable enclosures are made of special FIVE fold profiles to provide high strength. It’s an enclosed column structure, compared with traditional open type beams and columns.


  1. The frame is assembled by welding the overall structure to assure strength & reliability.
  2. Profiles are provided with module of 25mm round holes for quick and easy installation of equipment & supports.
  3. Our Extendable enclosures are provided with 4 eye bolts to facilitate the lifting process

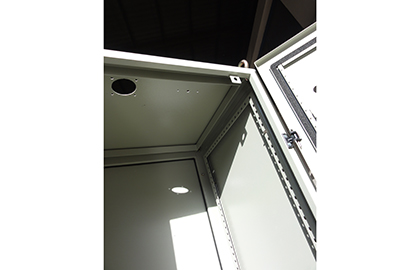

  4. Cabinet side covers, back covers, top plate as well as bottom plate can be removed to meet various requirements for easy installation and maintenance.
  5. Up to IP 54 Rating

Technical Data

Material – GI
Thickness – 2 mm
Options – Plinth, Louvers, Paint, Capacitor tray, Cut outs, Channels on request.

For more details please contact us
